Welcome to RAW Works. My name is Raymond and I live in the western suburbs of Sydney. This blog will be a portal for me to photo-document the wheels I refurbish and repaint. This is only a side hobby for me so there won't be any crazy custom jobs! My skills have only stretched so far as to using body repair materials, resprays and polishing, so anything that requires welding and unbuckling will be beyond what I can do. I hope to improve on my current skills as I go along, and as a lover of wheels, it's a way for me to express my art side as well as giving life to some tired wheels again.

At the moment, I'm just scouring through eBay for damaged wheels selling for cheap. If you have any wheels you don't need anymore, throw me an email/comment. At the moment I'm just buying sets of wheels to refurb then sell them off. I prefer not to do personal jobs/requests as I don't trust myself with that yet! But that said, pass me an email/comment if you need any help wheel-wise.

My Facebook page is @ http://www.facebook.com/raysalloywheelworks/, please "like" it!


Mar 8, 2015


Hi guys.

If you ever need to contact me, please write an email to:


I have stopped using my hotmail account for some time now and didn't realise that this blog had that email displayed, so I am very sorry if I did not reply to your emails!  Also, remember to check out the new site at:


Thanks guys.


Oct 27, 2013

New site!

Hi guys.

I'm now publishing my wheel builds over at House of Stance's website.  You can find the RAW Works articles over @ http://www.houseofstance.com/category/raw-works/.


Jul 30, 2013

Work Rezax I - Showcased Project Part 1

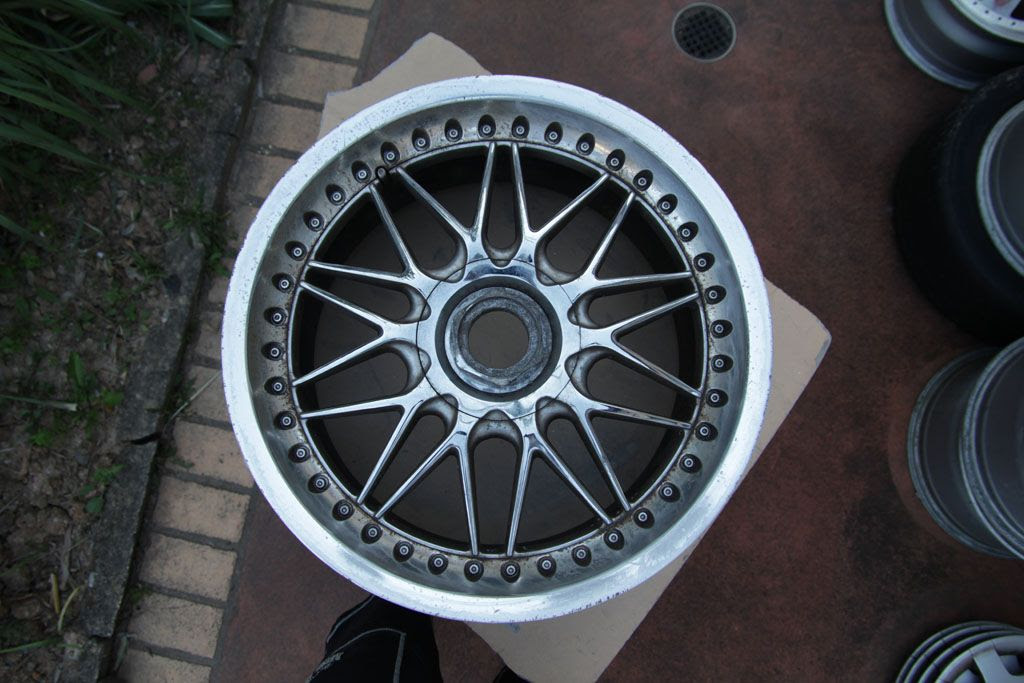

The Showcased event as presented by The Lowdown is on again this year, September 8th.  I thought I'd prepare a set of wheels for this occasion and I've chosen my Work Rezax I that I had bought impulsively ages ago while looking for centre-caps for my Work Rezax Roar.  They are a staggered set (18x8.5 ET45 and 18x9.5 ET45) with the rare DDC lips.  All centre plates were included but only three hexes (later found another one at Otomoto).

 photo IMG_2814.jpg

 photo IMG_2517.jpg

 photo IMG_2518.jpg

 photo IMG_2519.jpg

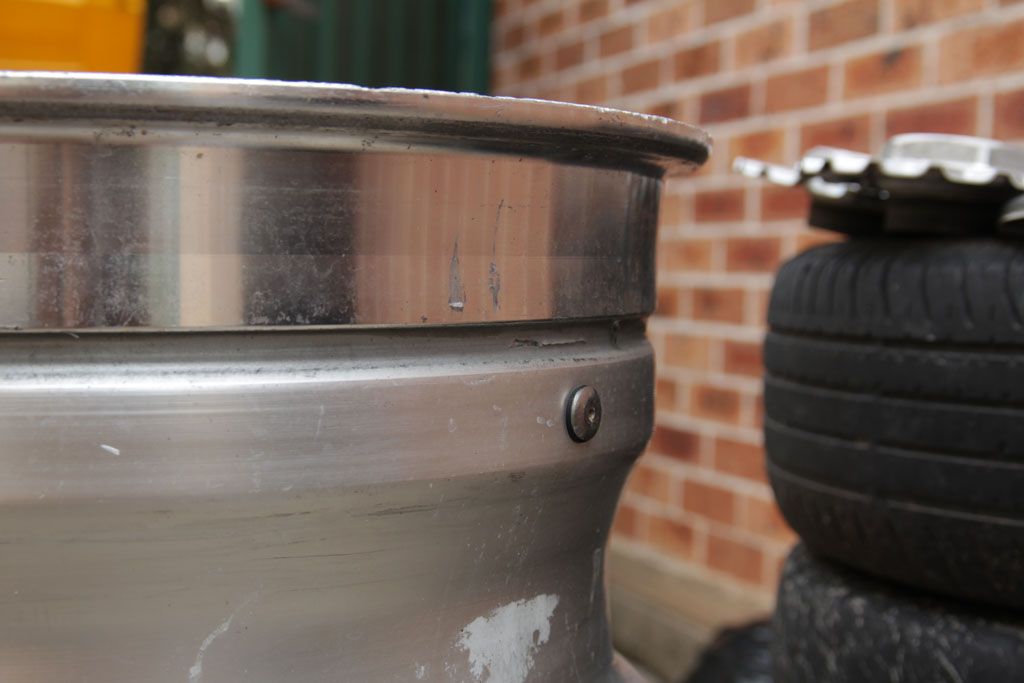

 photo IMG_2524.jpg

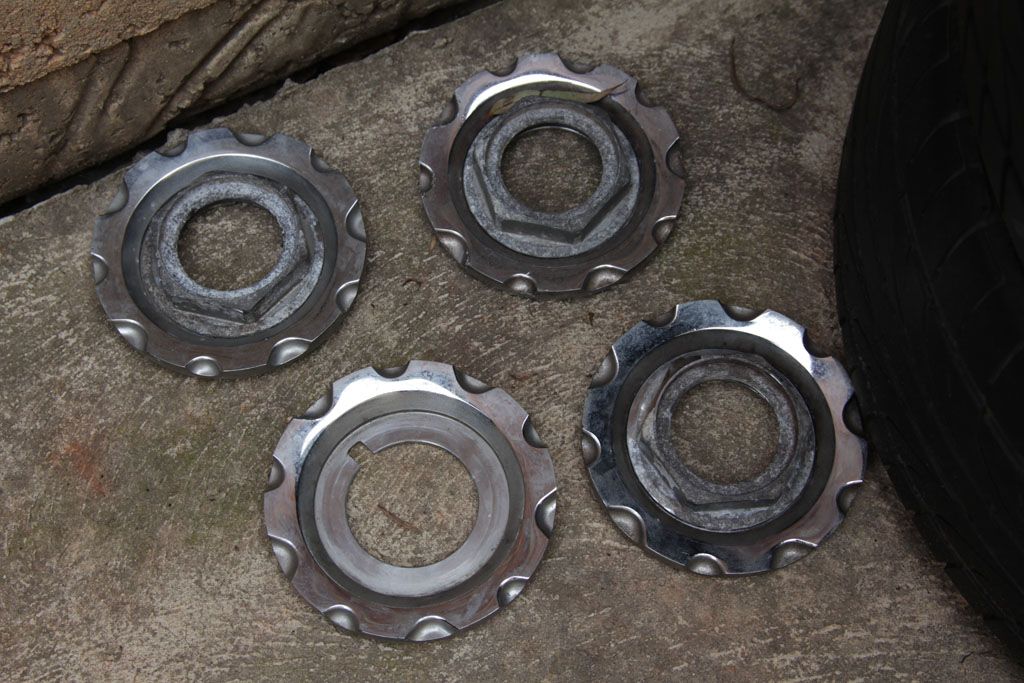

 photo IMG_2521.jpg

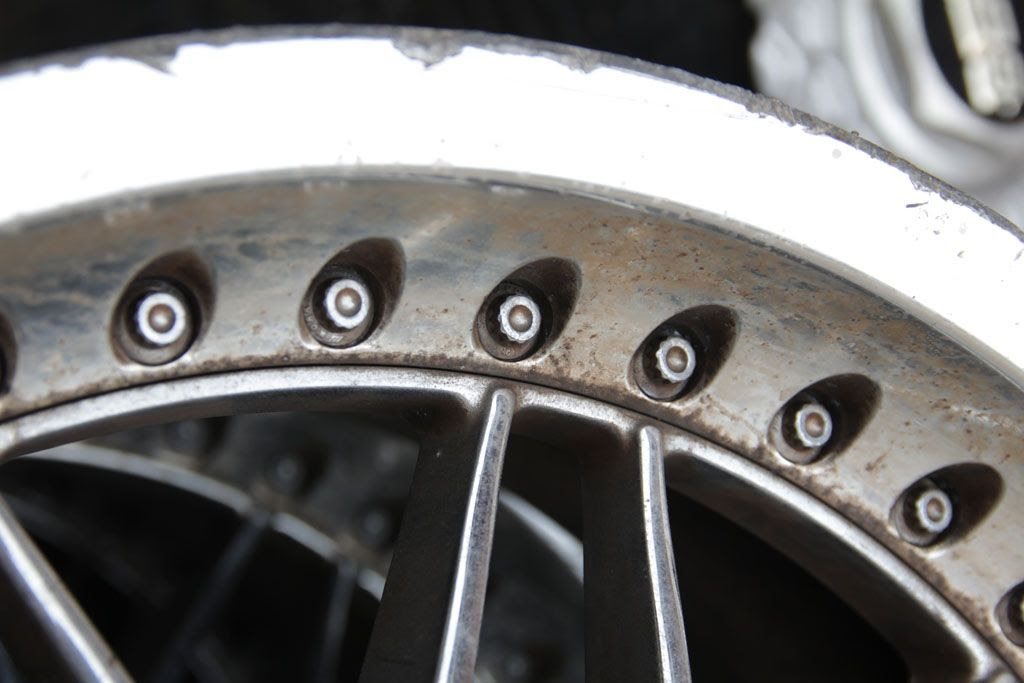

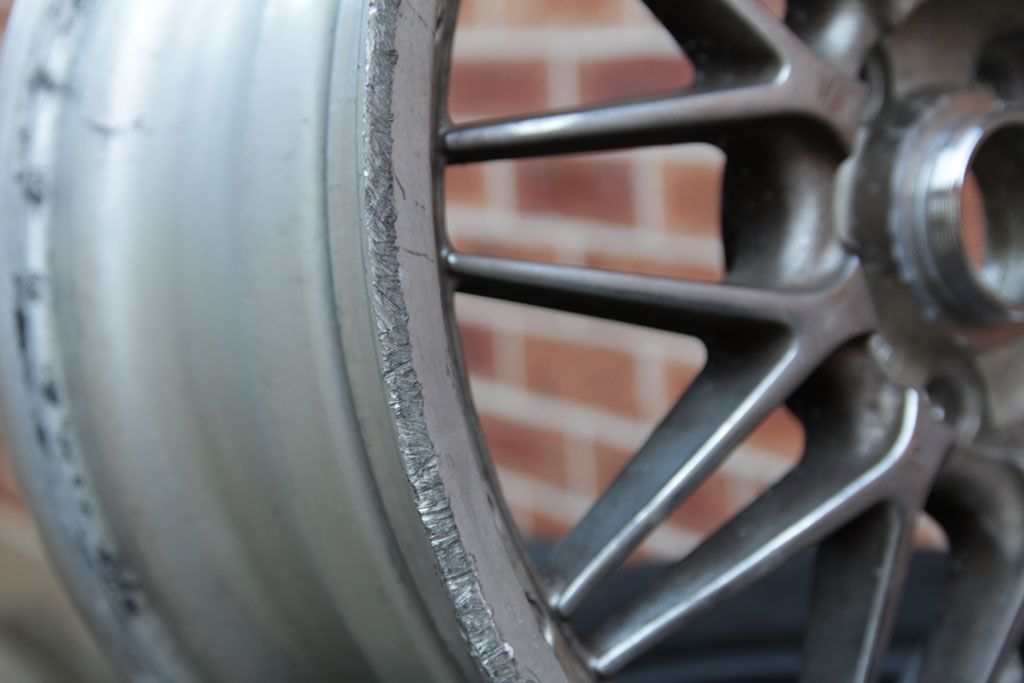

It was a cheap acquisition due to the amount of damage and neglect it had suffered over the years; I'll let the photos to the talking.

 photo IMG_2515.jpg

 photo IMG_2817.jpg

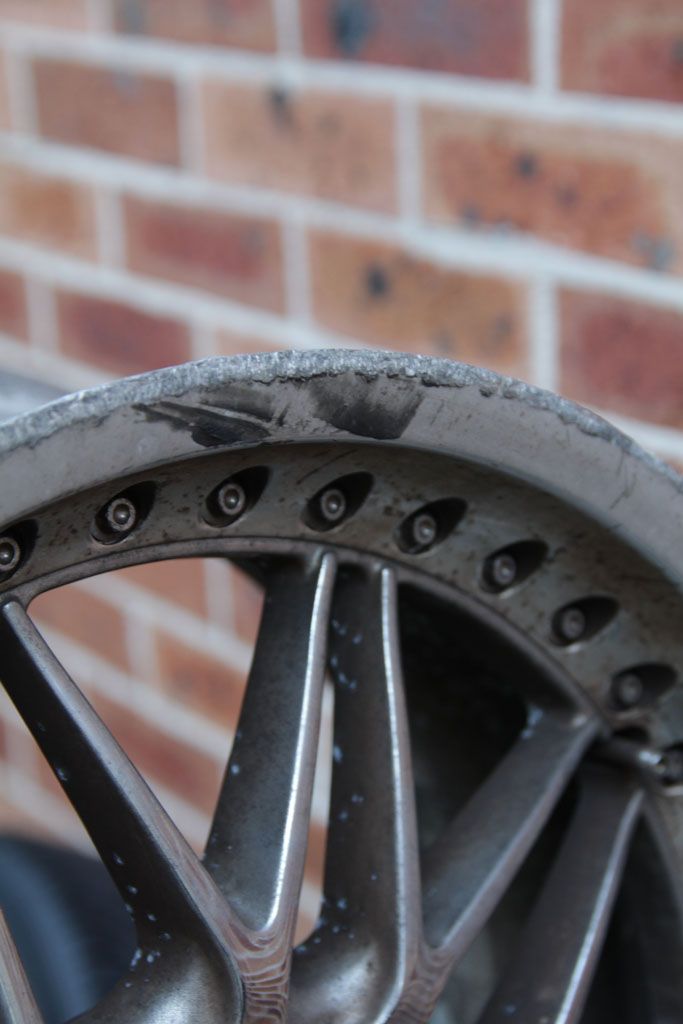

 photo IMG_2819.jpg

 photo IMG_2514.jpg

 photo IMG_2520.jpg

 photo IMG_2516.jpg

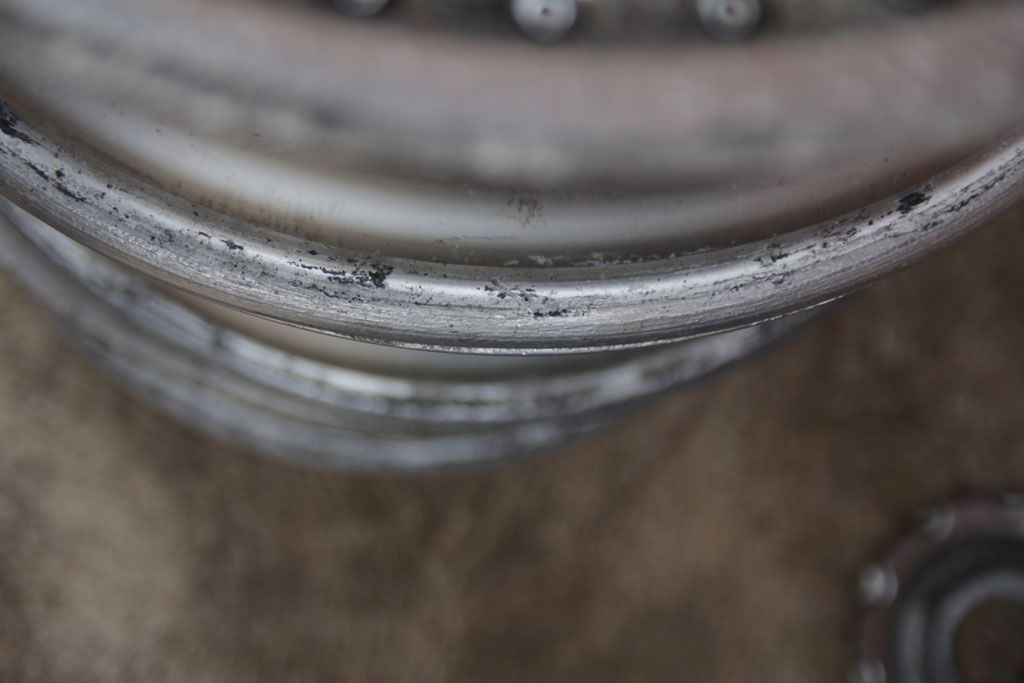

The buckles were taken to Magman to reroll and straighten out.

 photo IMG_2512.jpg

 photo IMG_2513.jpg

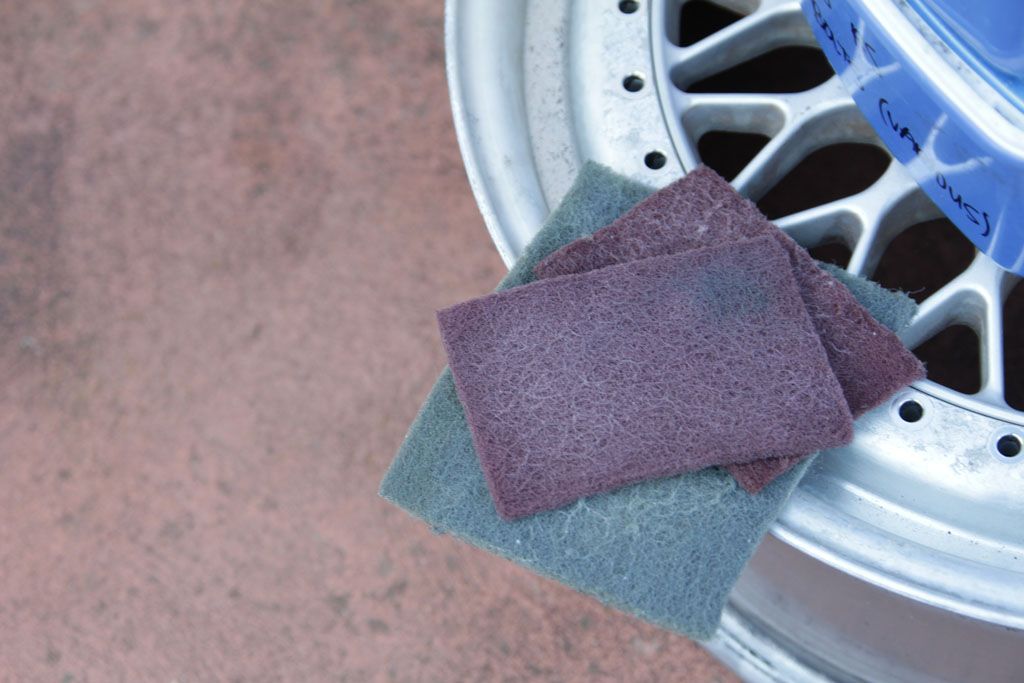

Files, sandpaper and scotchbrite were used to clear the gutter rash.

 photo IMG_2821.jpg

 photo IMG_2820.jpg

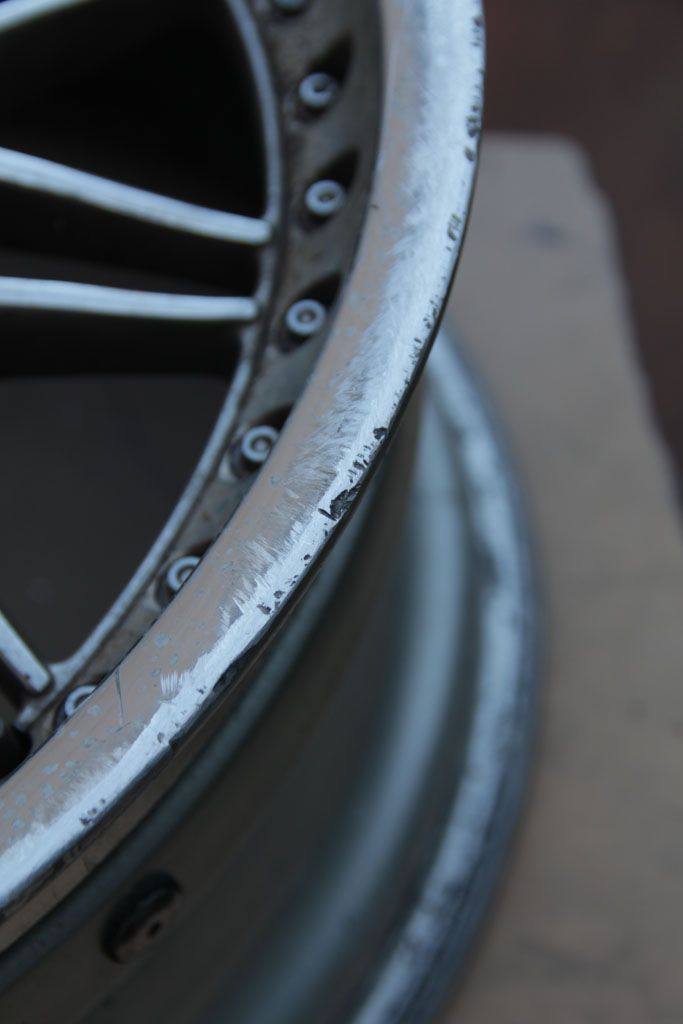

 photo IMG_2816.jpg

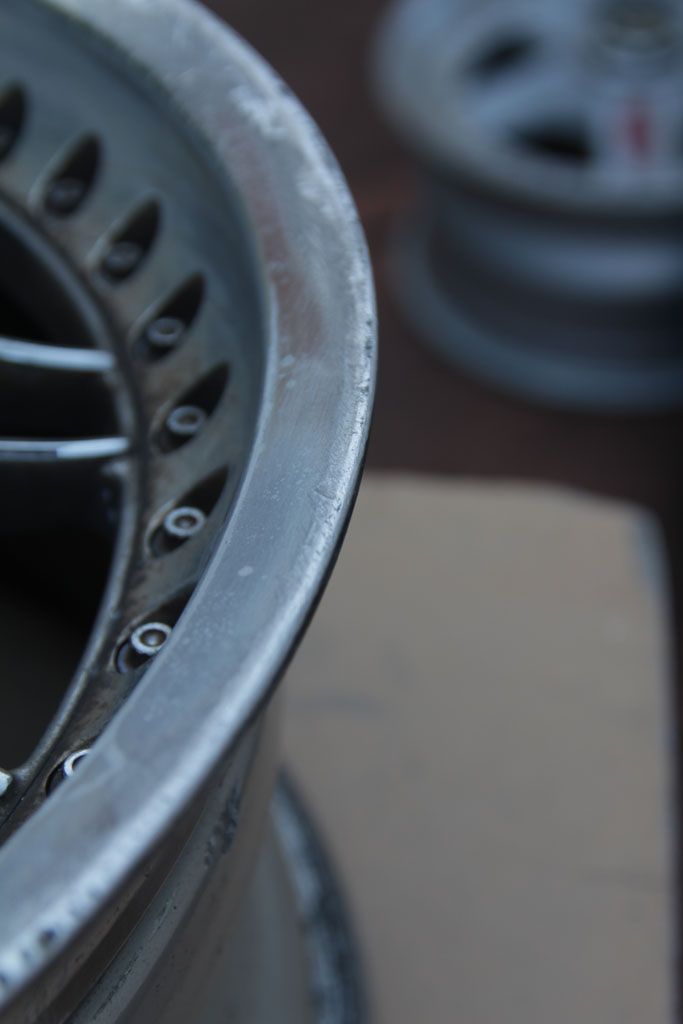

 photo IMG_2815.jpg

Next was to take apart the pieces.  These were relatively easy to take apart (perhaps they're not as old as the usual BBS RS that I take apart).  The sealant bead wasn't thick either so it was easy to slice apart, and then with a mallet, knock off each piece.

 photo IMG_9964.jpg

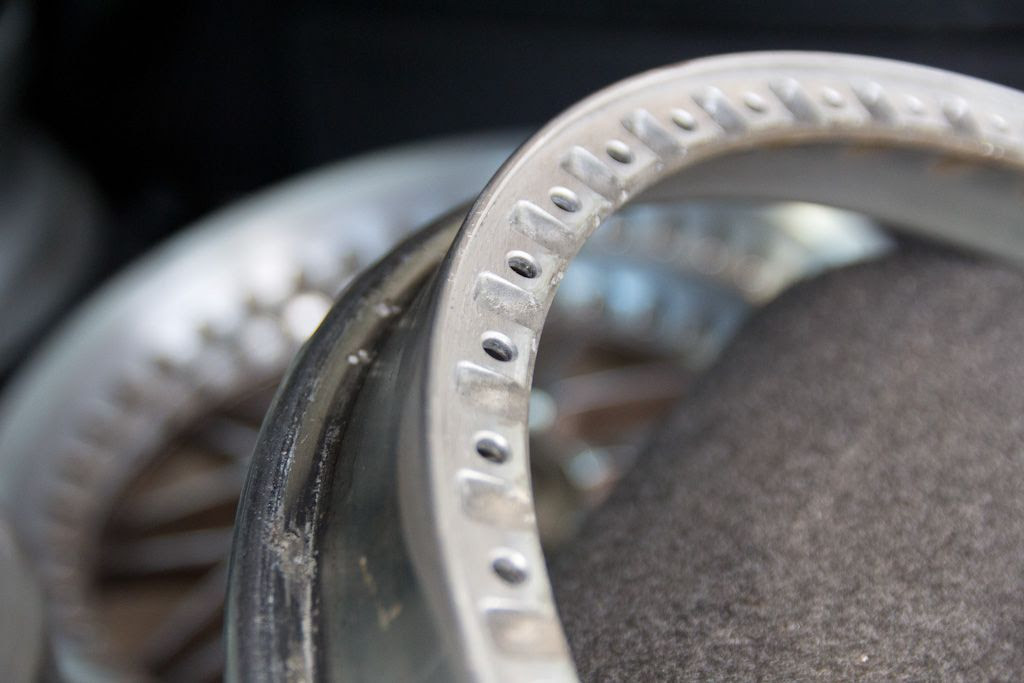

It's worth noting that the Rezax has pockets in between the bolt holes for the centres and lips. Perhaps for weight-saving? Perhaps to allow for sealant to seep through instead of through the bolt holes to make it less messy for those that apply sealant between the pieces? The inner barrels are pretty standard though.

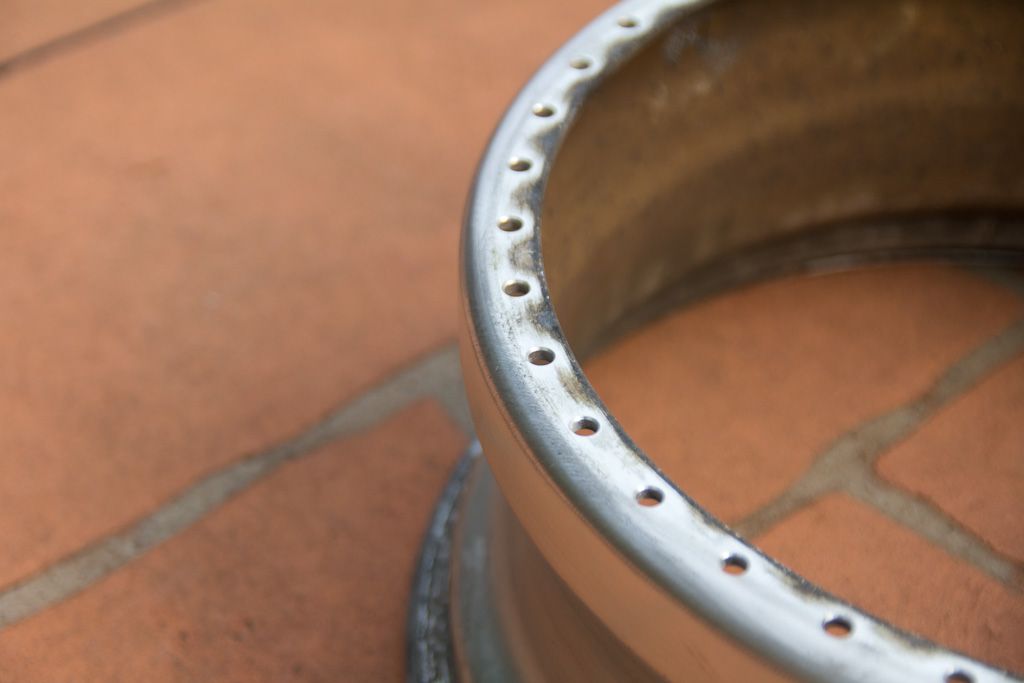

 photo IMG_9966.jpg

 photo IMG_9965.jpg

 photo IMG_9967.jpg

Next is to have them painted up, the hexes refinished, perhaps locate some centre-cap emblems, and bolt up + reseal.  I already have the bolts for them :)

Feb 28, 2013

Cam Farey's BBS LMs

I received some BBS LMs to help refurbish for a fellow VAG owner, Cam, for his Mk4 R32.

These were staggered 18x8 and 18x9, ET40, 5x114.3, front-mounted, numbered LMP080 and LMP081 and built early 2001.  Original condition was still pretty tip-top; some of the edges of the lips were rashed but had very little oxidation (clearcoat has been kept well; most likely hasn't been used/stored close to the sea nor used in snow conditions).

Bolts were easy to unscrew and unlike BBS RS, these are 2-piece and don't require a sealant as the barrel is one piece, so it wasn't a messy affair taking everything apart.

Only some of the bolts showed minor fading but nothing bad that the camera could capture.

The centres and barrels showed only slight imperfections here and there from exposure to brake dust.  All four spun true on the balancing machine.

I sent the barrels off to Greg, the sole operator of Magman @ Punchbowl.  He was already working on some BBS LMs, but their condition were much worse.  Salt must've broke down and gotten past the clearcoat and even the paint of the centres, with heavy oxidation showing on the lips and particularly the centres, which were completely rotten and exhibited a shitload of tinworm under the paint.  That said, Greg had trouble stripping the paint off using his industrial grade paint stripping solution, proving that BBS are a quality wheel that provides a quality finish, but even that didn't protect them from the harsh nature of being stored/used close to the sea.

All I can say about Greg is he's a good-natured bloke that is not only good at what he does, but provides a service that is rarely matched by others in the industry.  I would not hesitate to recommend him to others looking at getting wheel repairs done.

I repolished the lips with a finishing polish liquid compound that I prefer using compared to other branded compounds; it's a local product that I found at Pep Boys.  It's a very fine polish and takes out imperfections that even some polishes leave behind.  Also bought one of those polishing cone pads by Mothers.  Soft and non-abrasive, and quite easy to use as it gets in between the bolts quite easily without you having to operate the drill close to the rim.  A bit expensive though.

Came out pretty nice.

Some of the deeper gutter rashes were left behind.  To try and get rid of them would mean the edge of the lip would need to be machined down a lot further.  Filling any resulting rash after machining can smooth the edge over nicely but polishing the area would be impossible as it would no longer be a metal surface.  If the lip was to be painted then that's OK, but to keep that polished finish, no filler can be used.

Bolts were cleaned with a soft nylon brush in soapy water.

Torque was set to 28 ft lbs as the bolts and nuts were to be reused.

An hour later, it was all back together again.

It was an easy rebuild due to the original condition of the wheels.  Though I'll need to get my own polishing setup soon so I can do my own polishing.

Hopefully Cam will be going to ILV in Melbourne during March so I can take photos of the car sitting pretty on these LMs.  If that happens, I'll be sure to post them up here.

Rest of the photos (not much more) in my Photobucket - http://s25.photobucket.com/albums/c67/rayray086/RAWWorks/Cam%20BBS%20LM/

Feb 25, 2013

The Rookwood Renegades

Before the New Year, Justin of Justin Sung Photography mentioned the possibility of doing a RAW Works photoshoot, just a chance for us to have a look back at some of the wheel builds that went on during 2012.  It was a big year for RAW Works; I finally made a Facebook page and after completing stage 1 of Tony's RS001s, attention started gathering.  Then came Kennedy's big dish 17s followed by Josh's convexed 15s with spiked bolts and finally, Areis' gold 17s.  I did some smaller jobs here and there, replacing pairs of lips and resealing wheels, but they were the four major builds.  And so a few weeks back, we finally got together and did a photoshoot at Rookwood Cemetery (Tony's idea).

Michael Klimentos and Winson Louangkhoth of Street Cover came down with us too, sharing their expertise with their camerawork.

The day could've been better organised (my bad) but we all managed to meet together at North Strathfield IMO carwash and cruise down together to Rookwood.  It was an awesome sight though, seeing my builds rolling on four consecutive cars, all stanced the fuck out.  A lot of heads turned, some necks broken.  Unfortunately the rain didn't hold off, with patches of rain hitting us at the carwash (after some of the guys had dried off their cars) and some real heavies during the shoot.  But that didn't stop us, with Bunnings umbrellas being whipped out left, right and centre.

Anyway, on with the photos.  Only some of my favourites I've posted here, the rest can be found at my Photobucket - http://s25.photobucket.com/albums/c67/rayray086/RAWWorks/Photoshoots/Rookwood/?start=all

I only took snaps at Rookwood, but some of the others took photos at the carwash and I'm pretty sure there were some rollers too.  I'll add them in as I find them.


Thanks to the boys for coming out; Tony and Kennedy (fellow House of Stance members), Areis (of Stance Slutz) and Josh (of Team Break Even).  Also thanks to Justin (of Justin Sung Photography) for tagging along and doing what he does best, and Michael and Winson of Street Cover for taking time out of their Sunday to do this shoot for RAW Works.  It was great to see all the builds come together in one location.  And to those that say BBS RS are played out, you can go fuck yourselves!
